Migrate Personal Designer to DXF

Migrate Personal Designer to DXF with DraftView

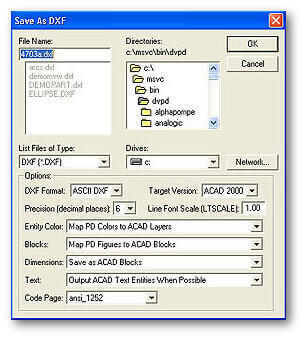

With DratView for Personnal Designer you can export PD drawings to DXF format. This can be done individually, while viewing a drawing, or any number of drawings can be "batch" translated automatically. Both methods have a generous set of output options which control various aspects of DXF file creation.

A small Windows program is provided for batch DXF translating. Thousands of PD drawings can be processing in one shot. Depending on file size and complexity, DVPD2DXF can translate a DRW file into DXF in less than a minute. In most cases the translation time is a few seconds per DRW file.

input

Input

  • Personal Designer, Personal Machinist, Microdraft, microCADDS, 4Design
  • All Revisions of the Above
  • All 2D, 3D and MView Entities
  • All Text Fonts, Including User-Customized Fonts

output

Output

  • Export PD as DXF, TIFF or JPG files
  • Batch Export PD as DXF
  • Command Line PD to DXF options
  • Export PD as PDF or HPGL files (via printer drivers)
  • Copy/Paste PD Images Into Other Windows Applications

features

Viewer features

  • Pan and Zoom
  • Layer Visibility Control
  • Print and Batch Print
  • Markup DRW file
  • Rotate 3D Model Views
  • Measure Distances (3D, 2D, intersections, endpoints, etc)
  • Verify Entity Information
  • Count Entities
  • View/Print: DWG, DXF, CGM, TIFF, JPG, CALS, HPGL and others

input

Configuration

  • network or stand-alone license
  • Windows 7/10
  • Unix (SunOS, Solaris or HPUX)
